Vacuum Elevator

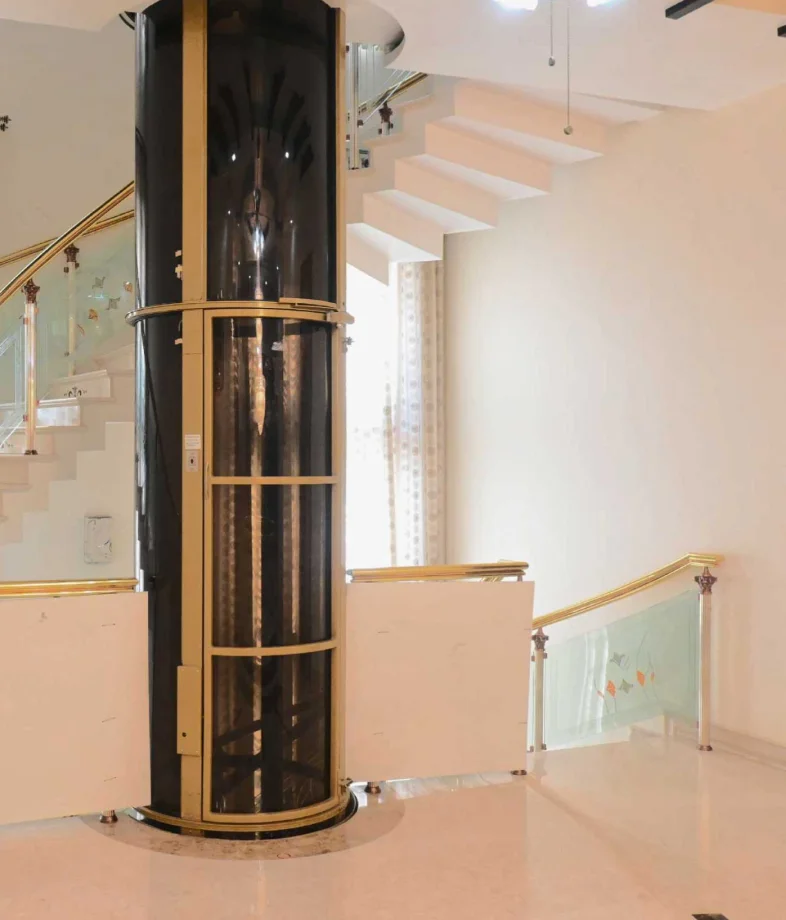

About
Experience the future of vertical transportation with Vacuum Elevators, leading the way in cable-free lift technology. Vacuum Elevators are state-of-the-art, cable-free lifts revolutionizing vertical transportation. Enjoy energy-efficient, sleek rides that prioritize safety, surpassing traditional lift expectations.

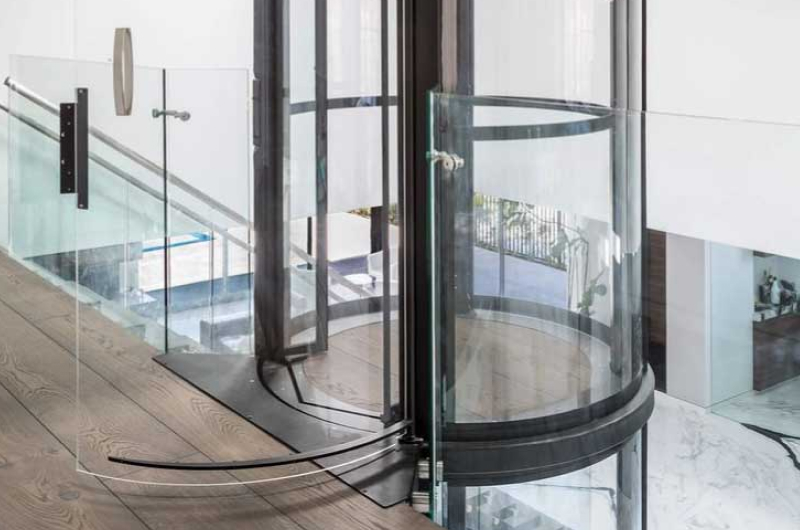

Concept
Vacuum Technology: Operates on pneumatic suction, using air pressure instead of cables or hydraulics to move the lift cab.Air-Driven Lift: The elevator cab resides within a transparent tube, where varying air pressures above and below generate the lifting force, enabling smooth vertical movement.Self-Supporting Structure: The transparent tube doubles as the lift's support, eliminating the need for a separate lift shaft. This simplifies installation and allows placement anywhere within the structure.

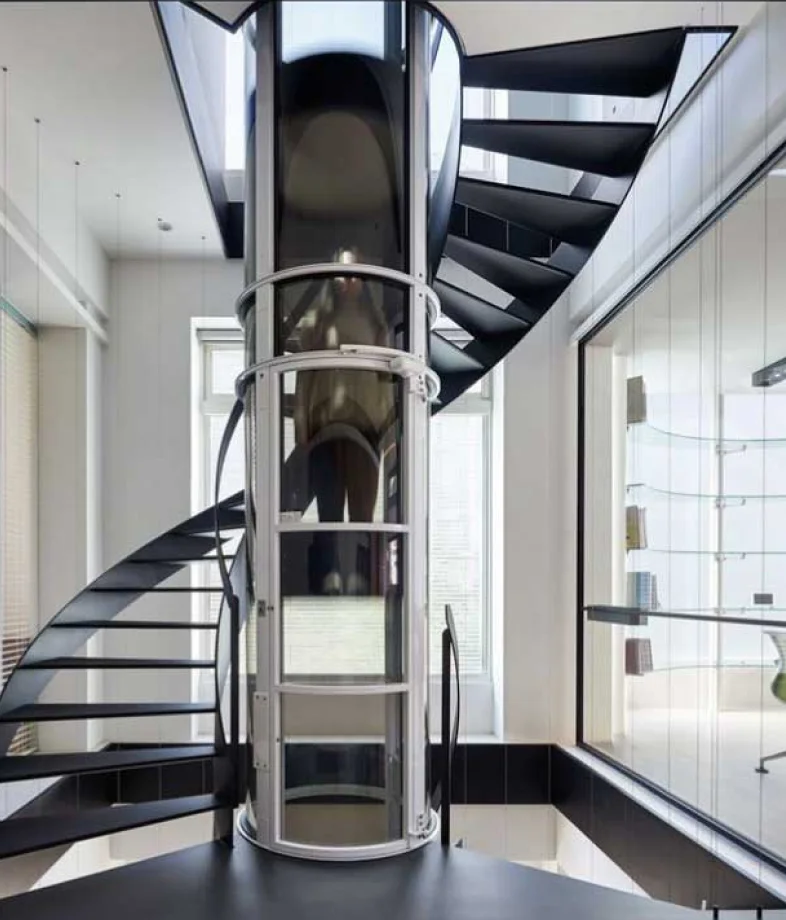

Safety Features
- Soft LED light curtain on the half-height door detects obstructions, halting the lift softly.
- Full closure of lift car door is required for movement.
- Integrated brake system ensures comfort and safety.
- Top and bottom sensors automate halts upon detecting obstacles.
- Load sensor prevents exceeding weight limits.
- Simple yet secure locking mechanism for the lift vehicle door.
Single Passenger Lift
Cylinder Diameter: 760 mm
Clear Cabin Diameter: 640 mm
Power Supply: Single Phase/30 amps/220 V
Two Passenger Lift
Cylinder Diameter: 960 mm
Clear Cabin Diameter: 850 mm
Power Supply: Single Phase/32 amps/220 V
